PRODUCT FEATURES



1.THREE STAGES CURRENT, TIMING & TEMPERATURE PROTECTION.

The unit has three stages of over current protection. Current based, length of time at over current levels and temperature based.



2.AUTOMATIC INTERNAL LOW VOLTAGE RE-START.
When the battery is stored for a long period with no charging lithium batteries normally are hard to recover. Our batteries have

Ultra Low Voltage Recovery, just connect the battery to lithium battery charger to auto recover easily.



3.SELF-RECOVERY AFTER A SHORT CIRCUIT.
The circuit trips when connected to the short-circuit source. The system automatically restores the power supply,

when the short-circuit source is disconnected.



4.PARALLEL CONNECTION OF THE BATTERY PACKS.
You can use an infinite amount of our batteries in parallel. Our BMS will handle this seamlessly.



5.ACTIVE CROSSOVER EQUALIZATION OF THE INTERNAL CELL BANKS.
Our multi string active cell balancer keeps the internal cells banks equalized, If one or more banks are lower than another bank

the balancer will divert power form the higher bank into the lower banks when charging and discharging.



6.BATTERY CAN CONTINUE TO OPERATE AFTER A SINGLE CELL FAILS.
When a single cell fails the battery pack will continue to operate normally but at a reduced capacity or power.



7.THERE IS NO VOLTAGE SPIKE, WHEN THERE IS A SINGLE CELL SHORT CIRCUIT.
When a single cell fails the Active Balancer will control the voltage of the other banks of cells so there is no voltage spike.



8.OUR BMS ADOPT DIGITAL CONTROL PROTECTION AND ANALOG CONTROL PROTECTION.



9.ON THE BASIS OF OVER-TEMPERATURED PROTECTION,OUR BMS HAVE THE FUNCTION OF LOW-TEMPERATURED PROTECTION.





► PRODUCT SPECIFICATIONS



1.Product Overview



  180AH Lithium Iron

  3000+Cycles

  Dimensions: 495*205*220mm

  Chemical: Lithium Iron LiFePo4

  Cell Type: Prismatic

  Cell Weight: 14.94±0.013kgs

  Operating Temperature Range: -20°C ~ +60°C

  Voltage: 12.8VDC

  Cell Capacity: 65Ah

  Max Continuous Current: 100A

  Max 30 Seconds Pulse: 120A

  Min Charge Current: 1A

  Max Charge Current: 60A

  Max Charge Voltage: 14.6V

  Recommended Charge: 30A

  Cell Balancing: 5AH charge & discharge

  Cycles @ 100% DOD: DOD 2000 Cycles

  Cycles @ 80% DOD: DOD 3000 Cycles

  Cycles @ 50% DOD: DOD 3500 Cycles

  Cycles @ 30% DOD: DOD 8000 Cycles

  Low Voltage cut out: 10.0VDC

  BMS Reconnect: Automatic

  IP Rating: IP65

  Terminal: T10 (mm)







































2.Technical Specifications



Specifications Rating Notes
Overall Voltage Overcharge Protection: 14.8V Maximum single cell voltage: 3.65V
Standard Discharge Current: 100A 0.5C
Maximum Active Circuit Current: Running Current: 5A
Max Running Current: 8A
Final equilibrium effect: 3mv
(Average voltage difference between the unit and battery)
Working Temperature:  -20-60℃
Storage Environment Conditions:

Storage temperature: -40℃~85℃ 5%~75% RH Relative humidity

Lithium iron phosphate battery has excellent electrochemical performance.

The charging and discharging platform is very stable.

Single Cell Over-Charge Protection Voltage:

3.65±0.05V
Delay: 1±0.5S

Release: 3.550±0.05V


Single Cell Over-Discharge Protection Voltage:

Protection: 2.50±0.1V
Delay: 1±0.5S

Release: 2.70±0.05V


Short Circuit Protection: Delay<10uS Current>250A
Charging/Discharge High Temperature Protection Temperature:

Protection: 70±2℃

Release: 65±2℃


Charging Low Temperature Protection Temperature:

Protection: -0±2℃

Release: 5±2℃


Discharge Low Temperature Protection Temperature:

Protection: -20±2℃

Release: -15±2℃


First Discharge Over Current: 120±10A Delay: 30S±3S
Secondary Discharge Over Current: 150±10A Delay: 3S±1S
Charge Over Current: >60A Delay: 6S
Low Voltage Charging: Battery Pack< 2.5V
BMS Charging Current: 0.8A
Each Cell> 2.2V Restore MAX current charge

MOS FET High Temperature Protection:

Protection: 70±2℃

Release: 65±2℃

The MOS FET temperature is higher than the high value, the battery will shuts off,and the temperature is lower than the lower,the battery will release.
Any Cell Broken Line Detection: It cannot charged or discharged when the wires is broken.





► PRODUCT DIMENSIONS









►DOWNLOAD FILE:  JS 180-12-90  180AH Lithium Ion Battery Datasheet

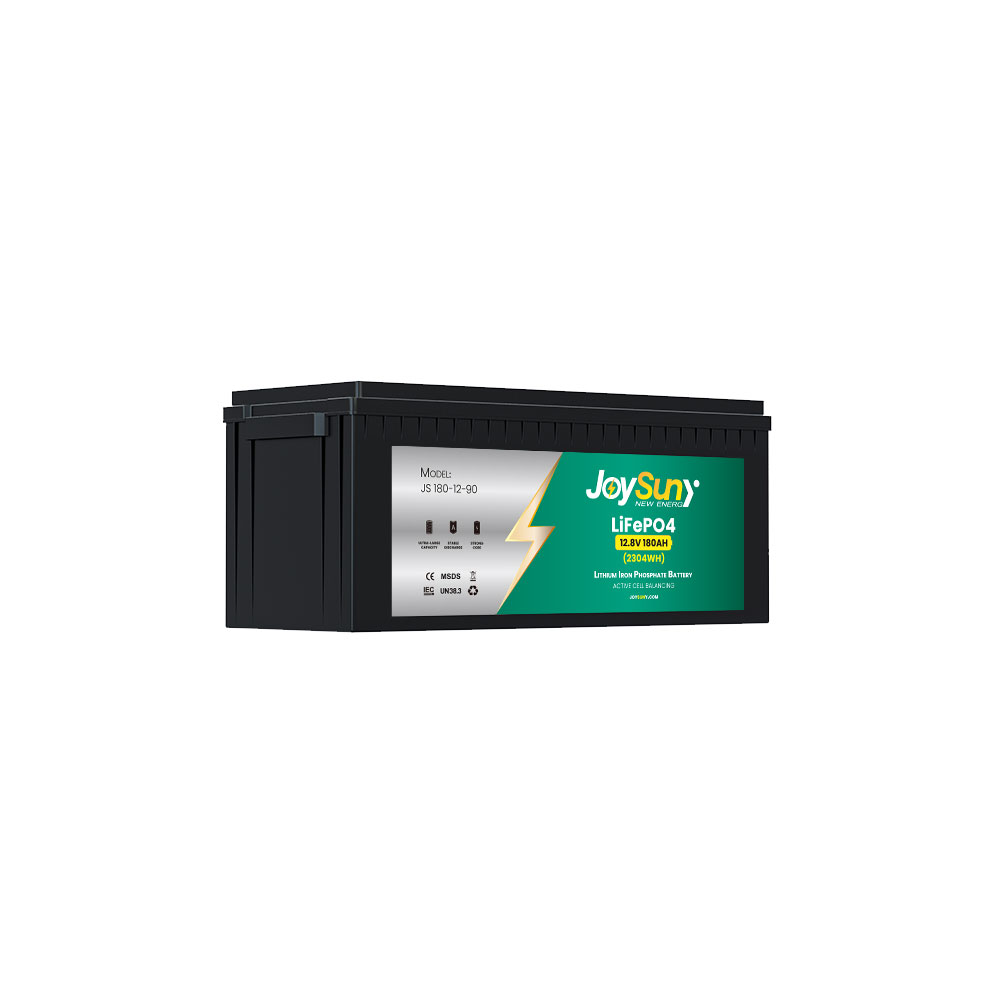

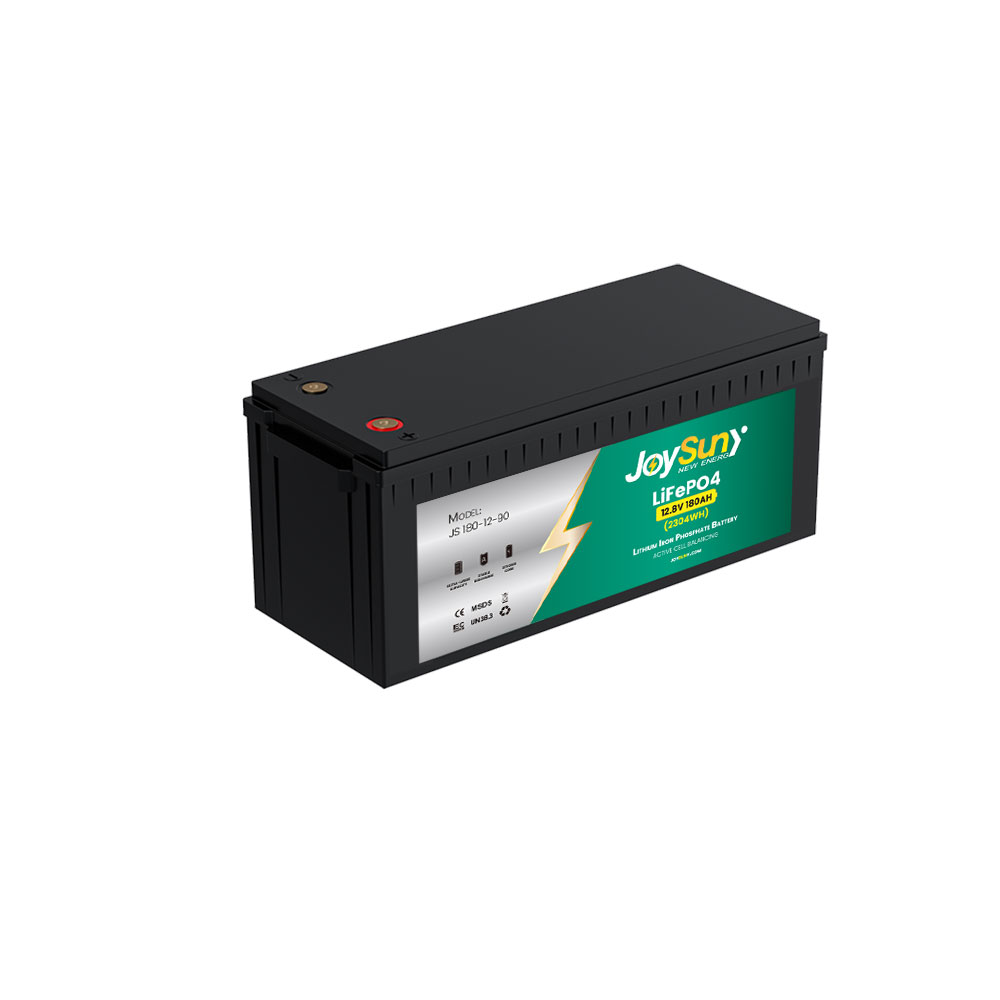

12 Volt 180Ah LFP Long Life Deep Cycle Battery

Features:
● Built in advanced BMS and Active cell balancer
● 3 Stage current, timing & temperature protection
● Automatic internal low voltage re-start
● Self-recovery after a short circuit
● Parallel connection of the battery packs
● Active crossover equalization of the internal cell banks
● Battery can continue to operate after a single cell fails
● Single cell short circuit active balancer
● The battery pack is equipped with a balancer
